The Datasync Community Toolkit - Day 5: Real-time updates

This article is the fifth in a series of articles about the [Datasync Community Toolkit][toolkit], which is a set of open source libraries for building client-server applications where the application data is available offline. The Datasync Community Toolkit allows you to connect to any database, use any authentication, and provides robust authorization rules. You implement each side of the application (client and server) using .NET - ASP.NET Core Web APIs on the server side, and any .NET client technology (including WPF, WinUI and MAUI) on the client side.

This is the last article about the server-side of things. In the next article, I’ll be looking at the client-side of things.

Thus far, I’ve walked through creating a project, introduced you to the standard repositories and custom repositories, and shown how you can implement access-control restrictions. By now, you should be comfortable with creating a backend service. To celebrate this, I’ve got a nice todo app that is based on TodoMVC.

Details of the TodoMVC implementation

• Start with an ASP.NET Core MVC application.
• Add Entity Framework Core with your favorite database.
• Integrate the Datasync Community Toolkit with the TodoItem model.
• Add a TodoMVC JavaScript application using local storage for the store.
• Create a DatasyncService inside the site Javascript that uses fetch() to call the table controller.

Most of the code is in wwwroot/js/site.js. You should be able to download the project, then press F5 to run the project.

Implementing real-time notifications

One of the basic questions I get asked (a lot) is how you can go from a datasync service to a real-time datasync service. Inevitably, the person asking is comparing with their experience with Firebase, Realm, or another “real time database”. Firebase, Realm, and others can do what they do because they are in charge of every aspect of the database. The Datasync Community Toolkit starts with a premise that you are in charge of how things work, want to own the data and use your own database. You can’t expect it to work out of the box the same way.

That being said, there are things you CAN do to make it seem like you are using a real-time database. However, you need to do a little bit of thinking. You need three things:

1. A real-time or near real-time communication channel between the server and the client.
2. A method of triggering an event that is transmitted on that communication channel.
3. A method of reacting to that event when it arrives at the client.

Potential communication channels

There are a lot of options in the “potential communication channels” depending on your specific circumstances.

• You can use a web-based real-time communication channel such as WebSockets or SignalR. Azure has scalable infrastructure for these that can scale up to about a million concurrent connections (if you have the money to support it). However, these communication channels are expensive (both in cost and complexity) and more suited to smaller numbers of connections.
• You can use a two-way communication channel like gRPC. I’ve never used gRPC, but the two-way communication is how (for example) Firebase implements its real-time functionality. It would be better if you implemented a gRPC channel for the entire system rather than just the real-time component.
• You can batch up the updates within a database, then use a long-polling HTTP request to get the updates. This is highly scalable at the cost of more database tables to manage and more complexity on the service.
• You can use an out-of-band communication channel like APNS, FCM, or WNS - let’s face it, you are dealing with offline data, so this makes sense!

For this project, I’m going to use SignalR. It’s well supported by ASP.NET Core and scalable when combined with additional Azure services. It also has the advantage that I don’t need to sign up for additional services to check it out. I can run everything on my local machine.

Triggering an event from the datasync service

There are two ways of triggering an event on the datasync service:

1. You can use the PostCommitHookAsync on the access control provider.
2. You can hook into the RepositoryUpdated event on the table controller.

Which one should you use? Well, it depends. If you have decided that every single table controller will get its own access control provider that you will inject into the table using dependency injection, the PostCommitHookAsync within the access control provider is a great way to do this. If, however, you prefer more separation of concerns, the event handler is the way to go. There is no “one size fits all” here. It’s your code. Personlly, I use the event handler mechanism the majority of the time.

Reacting to events on the client

How you react to events on the client depends on the communication channel. I’m going to be sending an event over the communication channel that looks like this:

{
  "operation": "ADD",
  "entityName": "TodoItem",
  "entity": {
    "id": "1234",
    "createdAt": "2024-12-24T03:00:00.123Z",
    "updatedAt": "2024-12-24T03:00:00.123Z",
    "version": "AAAAAAAB=",
    "title": "Santa Claus is coming!",
    "completed": false
  }
}

This data structure is expandable. When I receive one of these messages, I can “do the right thing” on the client. In my case, I’m going to create the SignalR channel with the @microsoft/signalr package, then wait for messages. As each message is received, I’m going to add, delete, or update the data within my internal list.

Walking through the code

I’m using a base project to start, and I introduced this earlier - it’s got a TodoMVC front end and an ASP.NET Core backend with the Datasync Community Toolkit already integrated. You can download and run the application from the todoapp-start repository and follow along. I’ll also show you how to do the trigger both ways.

Let’s start by integrating the SignalR hub (that’s the ASP.NET Core bit) into this project. You need to create a “hub” and then you need to wire it into the HTTP pipeline. My hub looks like this:

using CommunityToolkit.Datasync.Server;
using Microsoft.AspNetCore.SignalR;
using System.Text.Json;

namespace TodoApp.Service.Controllers;

public class ServiceHub: Hub
{
}

There is nothing going on here. This is the place where you would normally accept messages from the client. In this case, all the communication is going from the server to the client, so I don’t need to add any methods to the service hub. It’s just there to allow the client to register for receiving messages.

Next, update the Program.cs to add the newly created hub to the HTTP pipeline:

var builder = WebApplication.CreateBuilder(args);

// Missing - all the other services that are set up.  Don't delete them

builder.Services.AddControllersWithViews();
builder.Services.AddSignalR();

var app = builder.Build();

// Missing - the rest of the HTTP pipeline setup.  Don't delete it.

app.MapDefaultControllerRoute();
app.MapHub<ServiceHub>("/servicehub");

app.Run();

Obviously, I missed out the bulk of the code here, but it’s still there. I’m just highlighting the two lines that I added to support SignalR and where they go. Next, let’s adjust the client code so that it is receiving messages from the SignalR hub. First, add the @microsoft/signalr npm package to the project. You can either use Add > Client-Side Library to add it, or you can add the following snippet to the libman.json file:

{
  "provider": "jsdelivr",
  "library": "@microsoft/signalr@6.0.6",
  "destination": "wwwroot/lib/microsoft/signalr/"
}

When you save the file, it will restore the package. Add the package to your HTML code. This is in the Views/Home/Index.cshtml file:

  <script src="~/lib/todomvc-common/base.min.js"></script>
  <script src="~/lib/jquery/dist/jquery.min.js"></script>
  <script src="~/lib/handlebars/dist/handlebars.min.js"></script>
  <script src="~/lib/director/build/director.min.js"></script>
  <script src="~/lib/microsoft/signalr/dist/browser/signalr.min.js"></script>
  <script src="~/js/site.js"></script>

Finally, let’s add some code to wwwroot/js/site.js to activate and log the activity:

  const realtimeConnection = new signalR.HubConnectionBuilder().withUrl("/servicehub").build();
  realtimeConnection.on("ServiceChange", (evt) => {
      console.debug("ServiceChange", evt);
  });

  realtimeConnection.start().then(() => {
      console.debug("realtimeConnection started");
  }).catch(err => {
      console.error(err.toString());
  });

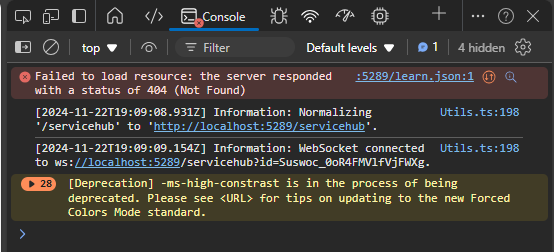

I placed this code at the bottom of the site.js file, right under the initialization and initial synchronization with the datasync service. You should be able to run the application at this point. Find your developer tools and look at the JavaScript console. You should see that the SignalR connection is established and awaiting messages:

Next, let’s look at sending some messages!

Trigger an event via the access control provider

I introduced the IAccessControlProvider and access control last time. At the time, I said “PostCommitHookAsync is for eventing” and left it at that. So, let’s take a look at a sample access control provider that implements eventing. My code for the TodoItemsController now looks like this:

[Route("tables/todoitems")]
public class TodoItemsController : TableController<TodoItem>
{
    public TodoItemsController(
        TodoContext context,
        IHubContext<ServiceHub> hubContext
        ) : base()
    {
        Repository = new EntityTableRepository<TodoItem>(context);
        AccessControlProvider = new EventingProvider<TodoItem>(hubContext);
    }
}


public class EventingProvider<T>(
    IHubContext<ServiceHub> hubContext
    ) : AccessControlProvider<T>() where T : EntityTableData
{
    public override async ValueTask PostCommitHookAsync(TableOperation operation, T entity, CancellationToken cancellationToken = default)
    {
        RepositoryUpdatedEventArgs eventArgs = new(operation, typeof(T).Name, entity);
        await hubContext.Clients.All.SendAsync("ServiceChange", eventArgs, cancellationToken);
    }
}

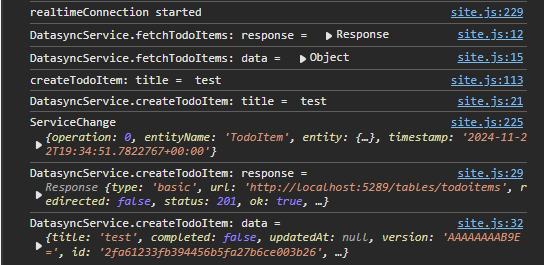

Remember to turn on verbose logging in your browser console and run the application. Changes will now show up within the console:

Let’s expand the JavaScript handler a little to handle the incoming stream of data. You should note that the data comes in for every change so you have to handle the condition when the change has already been done.

  const realtimeConnection = new signalR.HubConnectionBuilder().withUrl("/servicehub").build();
  realtimeConnection.on("ServiceChange", (evt) => {
    console.debug("ServiceChange", evt);
    const entity = evt.entity;
    let madeChanges = false;
    switch (evt.operation) {
      case 0:
        const addedIdx = todoItems.findIndex(item => item.id == entity.id);
        if (addedIdx < 0) {
          todoItems.push(entity);
        } else {
          todoItems[addedIdx] = entity;
        }
        madeChange = true;
        break;
      case 1:
        todoItems = todoItems.filter(item => item.id !== todoItem.id);
        madeChanges = true;
        break;
      case 4:
        const modifiedIdx = todoItems.findIndex(item => item.id == entity.id);
        if (modifiedIdx >= 0) {
          todoItems[modifiedIdx] = entity;
          madeChanges = true;
        }
        break;
    }
    if (madeChanges) {
        renderTodoItems();
    }
  });

A few notes here:

1. The “entity” is as stored in the database. If you need to adjust it (for example, to remove some data), do it before you call SendAsync().
2. The hub uses the default web JsonSerializerOptions for serializing the payload - in this case, eventArgs. This is not the same serializer as the datasync service uses. See the SignalR documentation for information on configuring the JsonSerializerOptions for the SignalR hub.
3. Because the hub uses the default web serilizer options, the “operation” is a number:
   • 0 = create
   • 1 = delete
   • 2 = query (which isn’t used)
   • 3 = read (which also isn’t used)
   • 4 = update
4. The real-time hub messge arrives BEFORE the response to the server. That means that you’ll have to adjust both the UI handling methods and the real-time message handling methods to deal with the situtions where the change has already been made.

Now, run the application and open two browser windows side by side. It’s best if you open up developer tools along the bottom for screen real-estate. When you make changes to one of the browsers, those same changes are replicated on the other browser.

Trigger an even using eventing

The table controller also has eventing built in, expliciting a RepositoryUpdated event. This is a great way to hook in (for example) cross-site replication or to do other interesting things that you don’t want to be doing in the main flow of the request. This makes it a great option for triggering our event. It only requires changes to the table controller:

[Route("tables/todoitems")]
public class TodoItemsController : TableController<TodoItem>
{
    public TodoItemsController(TodoContext context, IHubContext<ServiceHub> hubContext) : base()
    {
        Repository = new EntityTableRepository<TodoItem>(context);
        RepositoryUpdated += async (sender, eventArgs) => await hubContext.Clients.All.SendAsync("ServiceChange", eventArgs);
    }
}

The same caveats as before apply here - most notably that the event normally arrives before the response from the server. You can do the same tests with the two browsers to see it in action.

You can see why I like this version - it’s much simpler code-wise and doesn’t share a responsibility with access control.

Final thoughts

Most of the time, real-time is really not required. When it is required, it’s usually for time-sensitive information. Make sure you really need it before you implement real-time. It has scaling, cost, and complexity considerations. Obviously, I can do more here. Each client has an “ID” shared between client and server, so I can opt to send the message to all the users except the one that sent the request to the server. I can also decide whether to send time sensitive messages via push notification or real-time connections based on whether the user is connected or not.

Finally, I need to discuss security. Most systems are not as wide open as this demonstration app. You need to consider whether the information belongs to the user before sending it, which inevitably means keeping a mapping between user (and groups or roles) and the connection. As I said, real-time adds complexity and that means complexity in security as well.
